Arduino Moodboard

Problem

Participated in a one week design sprint to use an arduino improve something in your everyday life. I chose to improve the makeshift, sticky-note 'moodboard' used by my roommates on our fridge.

Solution

Created an arduino 'moodboard' refrigerator magnet. The user moves the joystick from left to right to direct the arrow to their 'mood of the day'. The wooden box is laser printed with magnets on the back. It is a fun and simple replacement to our sticky notes.

Project Images

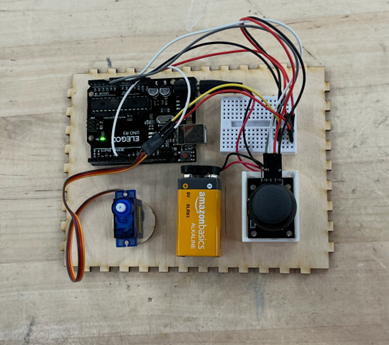

Circuit Design. Components include arduino, breadboard, joystick, and servo motor.
