Analog Lamp

Problem

The Gantri Analog lamp has long been on my wishlist, but I tasked myself with building the lamp with y resources at school instead of buying it.

Solution

The lamp is typically offered all in one solid color, but I knew I wanted black and white blocks to contrast the color in my room. I 3D printed the 'blocks' in PETG, a filament with better heat resistance in case of overheating. I entegrated a remote controlled LED panel into the lamp, so it can be controlled while I'm not at my desk. To acheive the rotational aspect, I fixed the blocks on top to a ball bearing, allowing for smooth 360 degree rotation of the block with the LED panel.

Project Video

Project Images

Initial drawings for lamp structure.

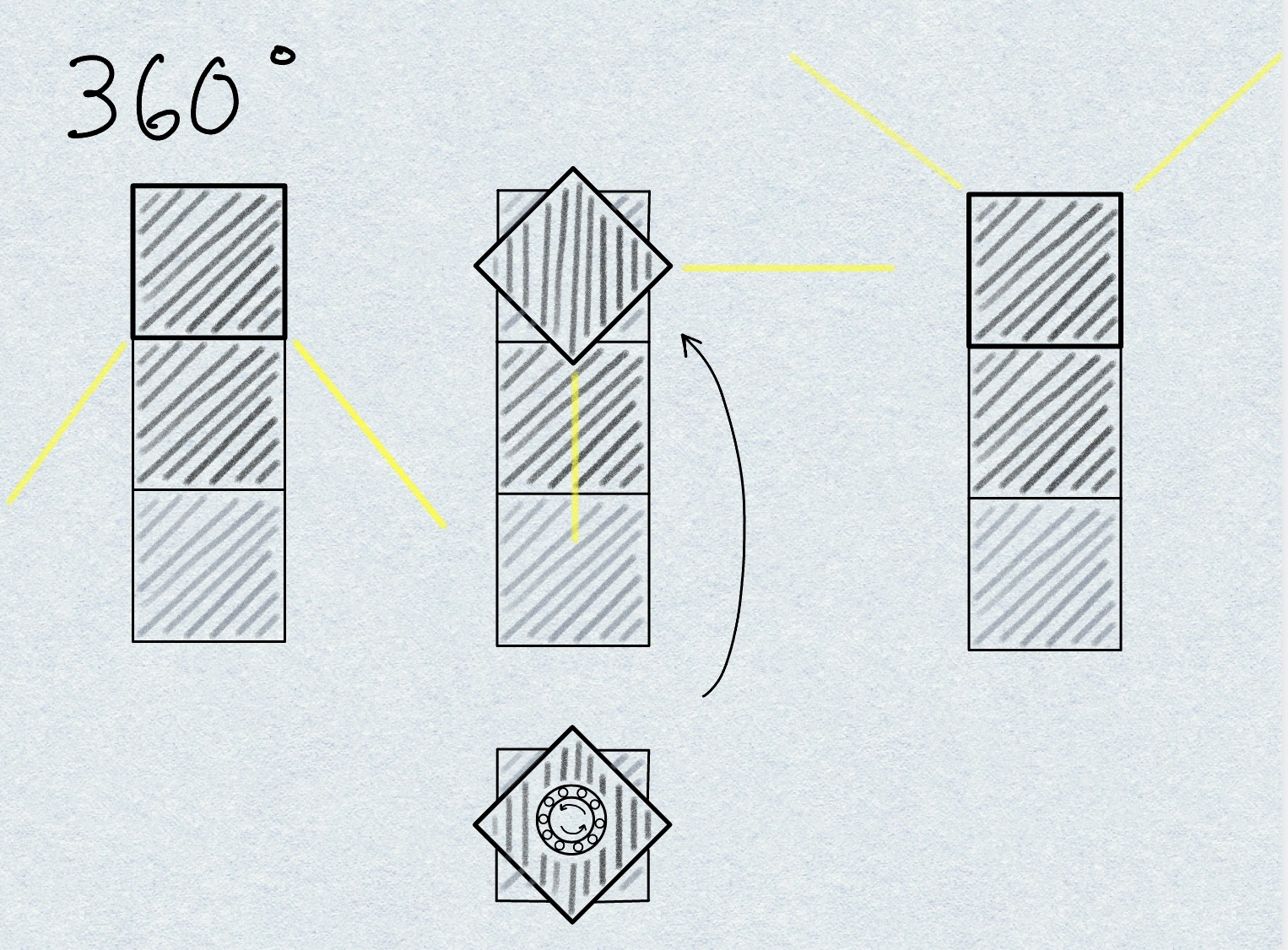

Initial drawings/brainstorm for rotational aspect.

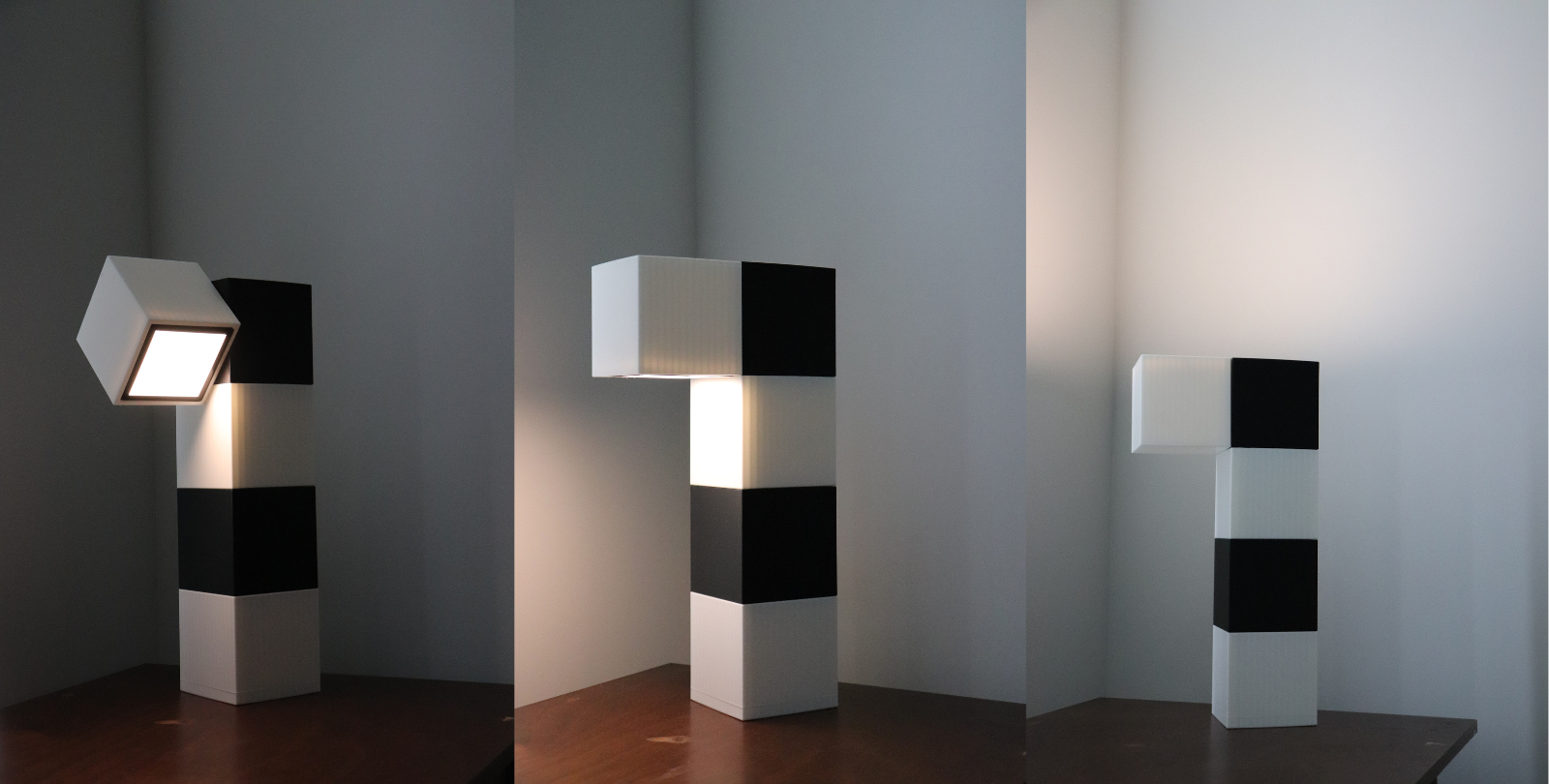

The light 'block' can successfully be rotated 360 degrees.
